Jungheinrich Light-Duty Fork-Over & Straddle Pedestrian-Only Stacker EJC110bi
Jungheinrich

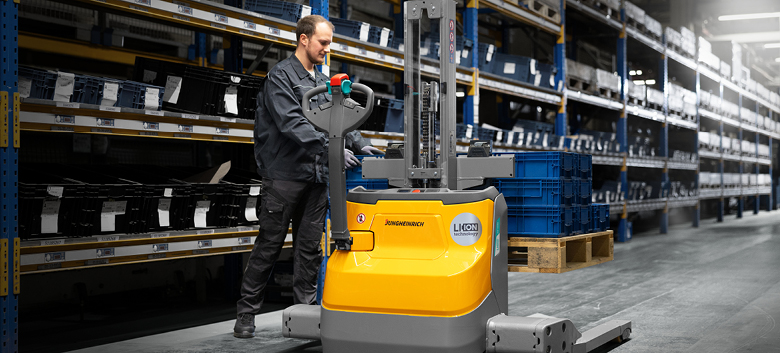

Light-Duty Fork-Over & Straddle Pedestrian-Only Stacker EJC110bi
EJC110i/EJC110bi
- Model EJC110bi
- Max Lift Capacity 2200
- Max Lift Height 78
or Call for Price: 877-373-4100
Get A Quote
Or Call for Price: 877-373-4100
Productivity
Straddle stackers feature fast lifting speed for improved productivity.
Compact and maneuverable straddle stacker simplifies operation within narrow aisles.
Designed for precise and gentle depositing of fragile loads onto racking or the floor. The stacker's lowering speed is electro-hydraulically controlled in 2 stages and can be controlled through a button on the handle head (optional).
Awareness
Offset drive unit creates higher four-point wheel stability.
Large, red emergency cut-off switch enables quick, intuitive shut down of forklift in case of emergency.
Energy Efficiency
The walkie stacker battery, when combined with energy-efficient 3-phase AC technology, provides long operating times.
Standard Maintenance-free 24V / 50 Ah Lithium-ion battery
Integrated 115V charger and cord for fast, simple charging at any 110 / 120V wall outlet.
Ergonomics
Ergonomic, multi-function tiller head.
Unique, single cylinder mast design for a superior view of the load.
The walkie stacker is easily maneuvered with the handle in the vertical position by pressing the crawl-speed button.
Lift and lower controls combined on a rocker switch for convenient operation in any handle position.
Slim profile mono mast design for a superior view of the load.
Total Cost Of Ownership
Low maintenance 3-phase AC drive motor.
Integrated charger sealed within IP54-protected controller.
Tiller head and electrical connectors pro¬tected to IP65.
Easy access to all forklift components through the durable front cover.
Contact Our Specialists Today
Let us help you find the right solution to optimize your warehouse productivity.
| Application Type | Indoor |
| Min Lift Capacity | 2200 |
| Max Lift Capacity | 2200 |
| Max Lift Height | 78 |
| Min Lift Height | 0 |
| Power Type | Electric |
| Primary Function | Put Away/Retrieval |
